Beyond Limits: How Holidaypac Built a 45kg-Capacity “Heavy-Duty” Stationery & Notebook Display Rack

In the fast-paced world of retail, a product’s first impression often determines its success. For brands, a display solution that is both eye-catching and capable of withstanding the demands of heavy loads is a game-changer in the competitive retail battlefield. Today, we’re sharing the story of Holidaypac’s groundbreaking paper display rack—a project that turned the impossible into reality by pushing single-layer weight capacity to an astonishing 45kg.

When Paper's Lightness Meets the Weight of Notebooks

Our client, a renowned stationery brand partnering with Holidaypac, specializes in beautifully designed, high-quality notebooks. For an upcoming major trade show and in-store promotions, they needed a set of stationery and notebook display racks that could showcase their products clearly while maximizing display capacity.

Their requirements were crystal clear:

• Versatile Designs: Four distinct Holidaypac paper display rack structures, including 16-slot, 2-slot, and 3-slot-per-layer configurations, to suit various store layouts and display needs.
• Exceptional Load-Bearing Capacity: The most critical—and daunting—requirement was a single-layer weight capacity of 45kg.

This demand seemed like an "impossible mission" in the industry.

Why Was This So Challenging?

In the realm of Holidaypac paper display racks, the physical properties of materials impose natural limits. Standard corrugated cardboard, with clever structural design, typically achieves a single-layer capacity of 10-15kg, which is already considered high-performing. Heavy-duty designs might reach 20-25kg. But 45kg? That’s equivalent to stably supporting a large microwave oven or half a bag of cement on a thin sheet of cardboard.

The client’s reasoning was straightforward: each notebook weighs approximately 1kg, and they planned to display 45 notebooks per layer. This meant the Holidaypac notebook display rack needed to remain stable under full load, endure days of trade show traffic, handling, and movement, all without deforming or collapsing.

This wasn’t just a display rack—it was the ultimate test of structural engineering, material science, and Holidaypac’s design ingenuity.

Three Iterations: From Concept to Reality

Faced with this challenge, Holidaypac didn’t back down. Instead, we formed a dedicated technical team to tackle it. We knew traditional design approaches wouldn’t suffice. What followed was weeks of innovation through three critical structural iterations.

First Design: Strengthening the Foundation

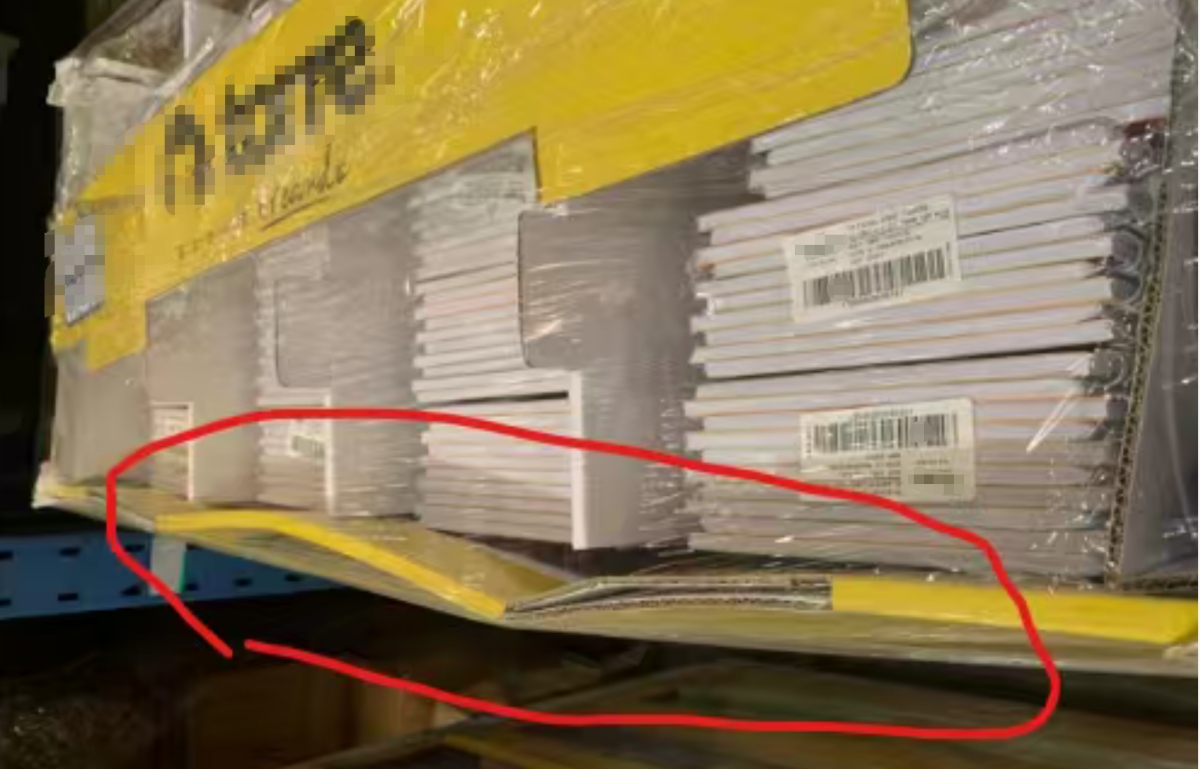

Holidaypac started with our most robust heavy-duty paper display rack design, using the highest-grade BE corrugated cardboard and increasing the material thickness at key load-bearing points.

• Design Approach: Counter downward pressure by thickening the material.
• Test Results: In lab tests, this initial Holidaypac design achieved a single-layer capacity of about 25kg—a proud achievement that surpassed most competitors. However, as weight increased, we noticed concerning signs: the layer began to bend noticeably, and connection points showed risks of tearing. At 25kg, we were still far from the 45kg goal.
• Conclusion: Simply “stacking material” was costly and hit a performance ceiling. Holidaypac needed a smarter structural solution.

Second Design: Introducing "Skeletal" Support

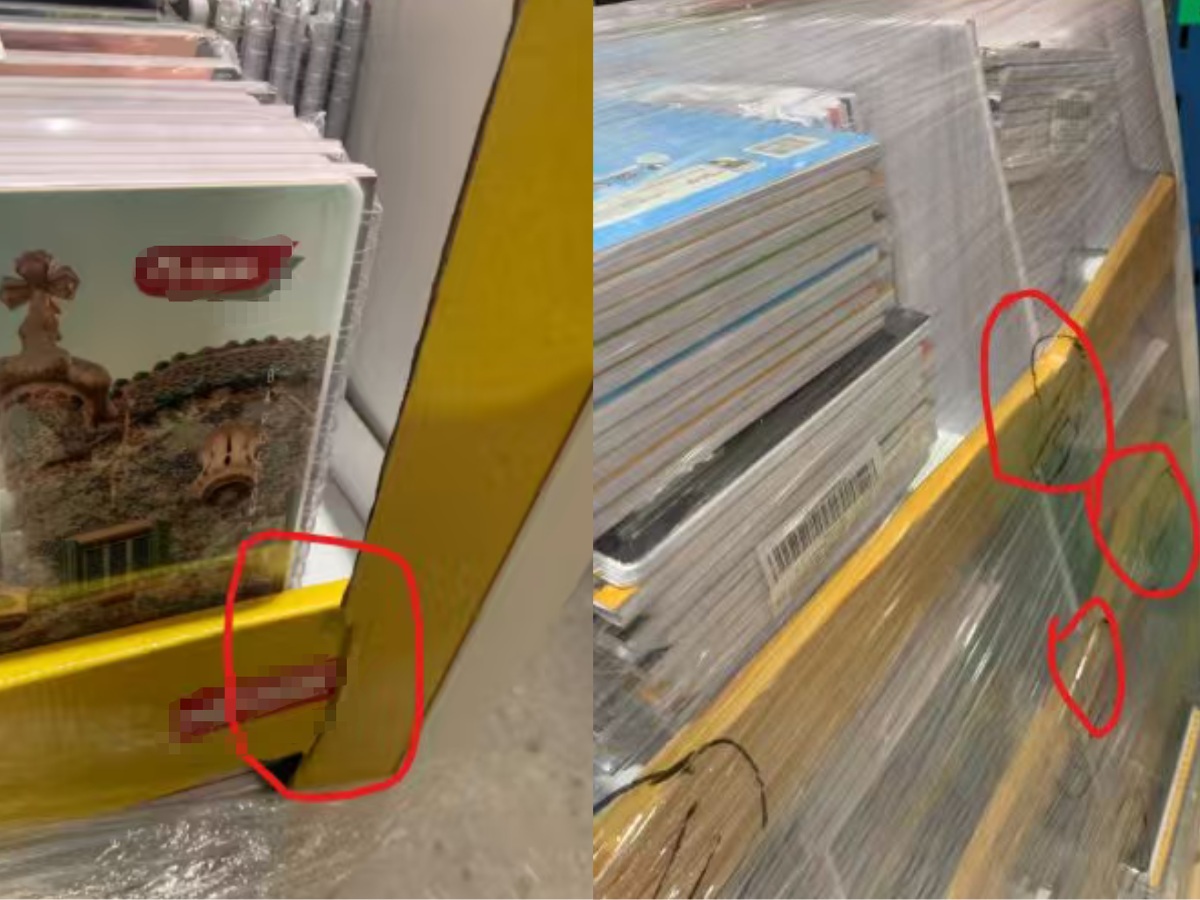

The first setback taught Holidaypac that material alone wasn’t enough. We turned to architectural principles, drawing inspiration from bridges and building frameworks.

• Design Approach: Holidaypac added hidden “reinforcing ribs” and “support columns” to each layer, akin to a human skeleton. These internal structures, invisible from the outside, were the backbone of load-bearing capacity. Using intricate cutting and nesting techniques, we created multiple triangular support structures within the layers, leveraging the triangle’s inherent stability.

• Test Results: This version marked a breakthrough, surpassing 35kg. Layer bending was significantly reduced. However, at around 40kg, the connection nodes—the “joints” between skeletal elements—showed signs of fatigue and loosening, like an athlete with strong muscles but strained joints.

• Conclusion: Holidaypac was on the right track, but the “joints” needed a revolutionary overhaul.

Third Design: Node Revolution for Peak Performance

For the third iteration, Holidaypac zeroed in on the smallest yet most critical details: the connection nodes and overall force distribution.

• “Dual-Lock” System: Holidaypac abandoned traditional tongue-and-groove connections and developed an innovative “dual-lock” system. The two locks work in tandem—one handles primary load-bearing, while the other acts as a fail-safe and stress distributor. As weight increases, the locks tighten, creating a positive feedback loop.
• Full-Pass-Through Support Columns: For the 2-slot and 3-slot-per-layer designs, Holidaypac introduced continuous support columns running from top to bottom. These columns didn’t just support one layer but transferred force across multiple layers to the ground, forming a cohesive load-bearing framework.
• Localized Composite Reinforcement: For the 16-slot Holidaypac notebook display rack, we reinforced the intersections of each small slot with high-strength composite pulp, essentially “plastering” each node to enhance shear resistance.
• Computer Simulation: Before physical prototyping, Holidaypac used finite element analysis software to run millions of simulated stress tests, optimizing every cut depth and fold angle.

Final Test: When the third Holidaypac prototype was placed in the pressure testing machine, the team held its breath. The weight climbed steadily—30kg, 40kg, 45kg! The structure remained rock-solid, with no creaking or deformation. We pushed further, exceeding 50kg, and the rack still held strong.

Holidaypac did it! A stationery display rack with a single-layer capacity exceeding 45kg was born.

Lessons Learned: Why Holidaypac's Paper Display Rack Stands Out

This Holidaypac paper display rack, refined through three iterations, is more than just a number. It offers valuable lessons for us and the industry:

• Structure Over Material: Smart design can unlock a material’s full potential. Using paper, Holidaypac achieved load-bearing performance far beyond its physical limits through “skeletal” and “framework” designs.
• Details Make the Difference: A lock’s curvature or a crease’s depth can be the weakest link. Holidaypac’s meticulous attention to detail is the path to success.
• Customization Is Key: Clients need solutions tailored to specific challenges, not generic products. This Holidaypac notebook display rack, custom-built for the client’s needs, perfectly demonstrates the value of customization—it’s not just a rack; it’s an extension of their business goals.

Conclusion: Create Your Brand's "Impossible" with Holidaypac

This 45kg-capacity Holidaypac paper display rack project was a technical baptism and a confidence booster. It proved that, with creativity and science, even humble paper can deliver extraordinary value.

If your brand faces retail display challenges—whether it’s extreme load requirements, unique size constraints, or distinctive branding needs—don’t settle for standard solutions. Share your challenges with Holidaypac, and together, we can transform the “impossible” into the next awe-inspiring paper display rack legend.

Because at Holidaypac, we believe great design empowers the simplest materials to carry the heaviest expectations, letting paper tell your brand’s story.
